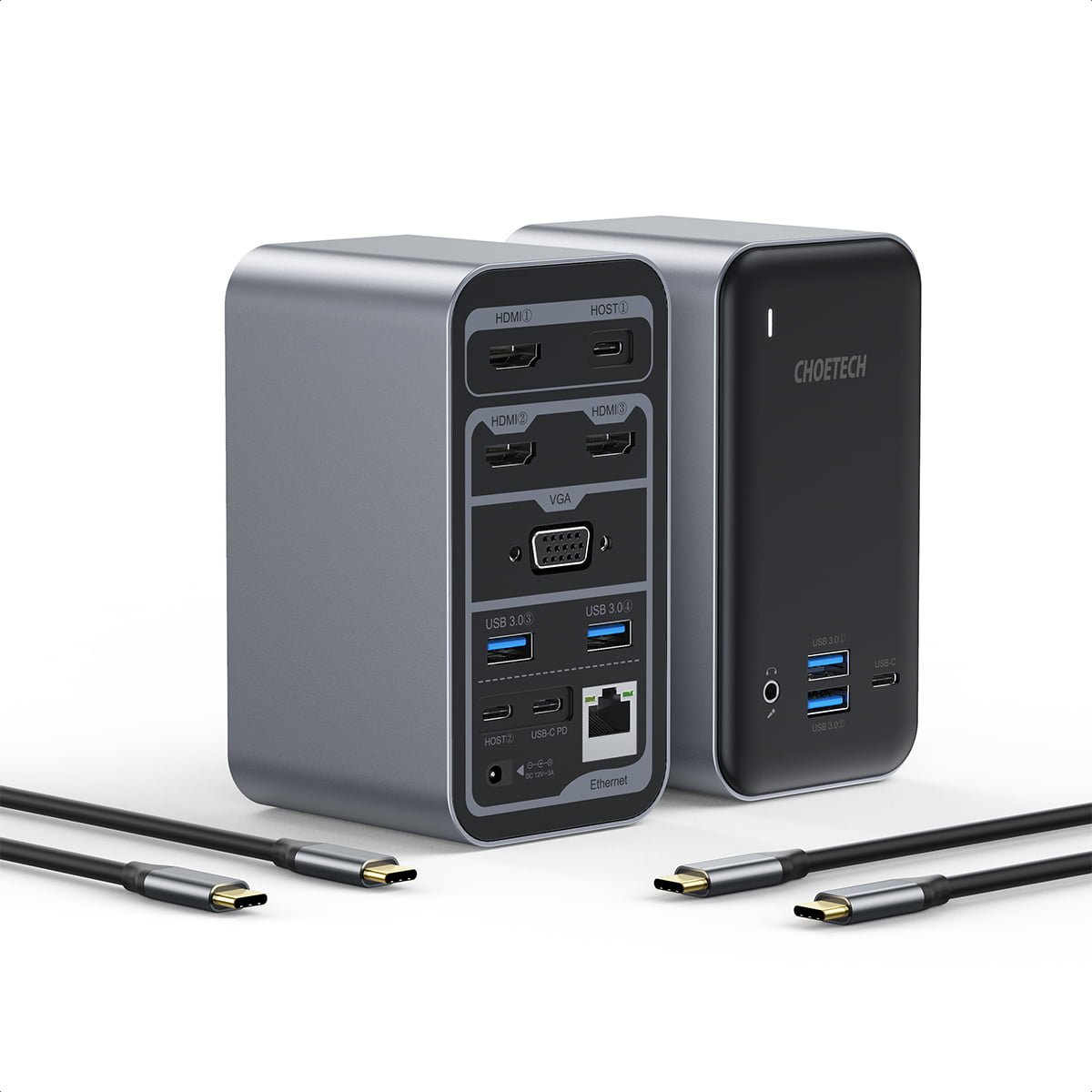

USB-C Docking Station, 15 in 1 Quadruple Displays USB C Laptop Docking Station for MacBook and Windows with 100W PD Input, 4K HDMI, VGA, 4 USB-A and 1 USB-C Ports, Ethernet, 3.5mm Audio Jack

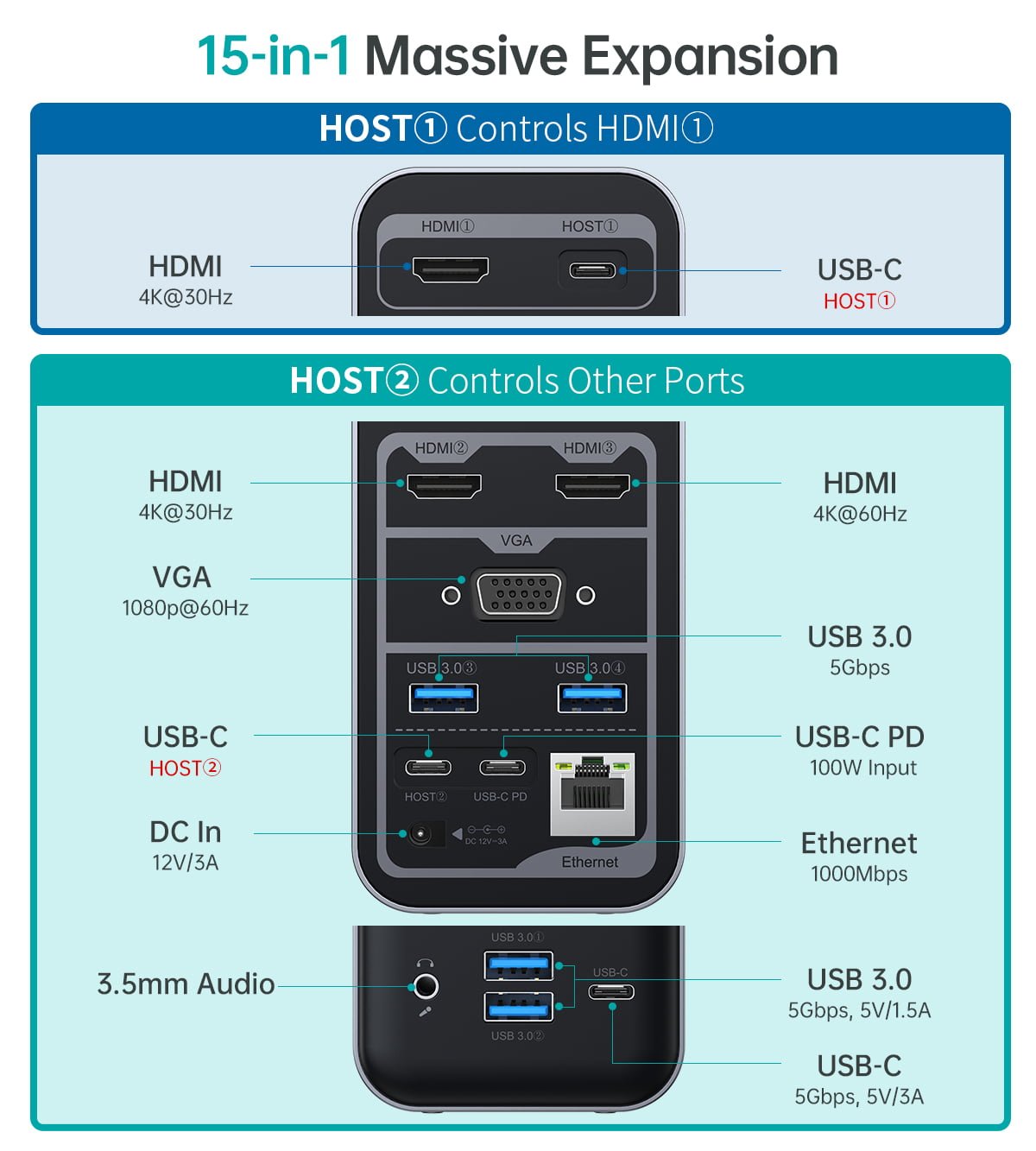

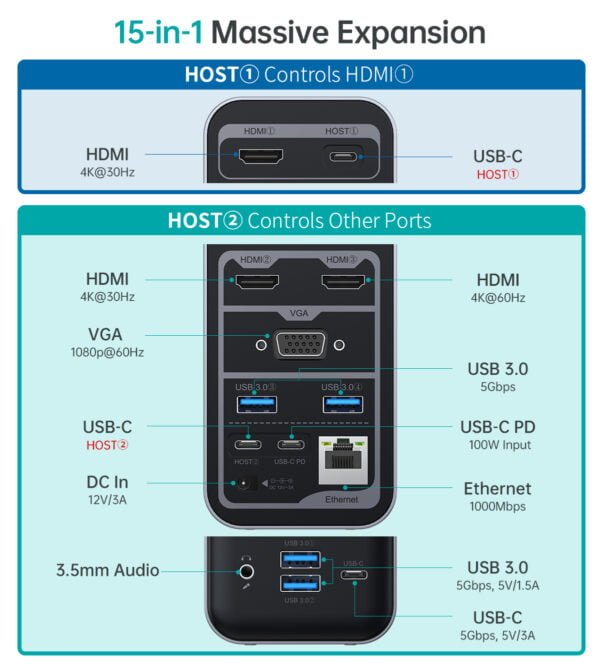

[15-in-1 for Massive Expansion] The USB C docking station expands its capabilities for most macOS & Windows laptops, and combines 15 ports in one-step solution including 3 x 4K HDMI, 1 x 60Hz VGA, 4 x USB 3.0, 2 x USB-C for Host, 1 x USB-C for charging, 1 x USB-C PD Input, 1 x DC, 1 x 1000Mbps Ethernet, 1 x 3.5mm jack. The usb c dock is totally powerful enough to connect up to 11 peripherals. A 36W DC power supply adapter and two USB C to USB C cables are included.

[Wide Compatibility] Compatible with certain devices over Thunderbolt 3 or USB-C, like MacBook Pro 2020/2019/2018/2017; MacBook Air 2020/2019/2018, MacBook 2017/2016; Google PixelBook; Microsoft Surface Go/Go 2/Pro 7/Surface Book 2; HP Spectre X360/X/EliteBook/ENVY X360; Dell XPS 13″/15″, Lenovo Yoga X1/C900/C700/730/720, Huawei MateBook X/MateBook X Pro; ThinkPad X390/T490/T590; iPad Pro 2020/2018 and more. Note: Does not work for LG phones and Nintendo Switch, etc.

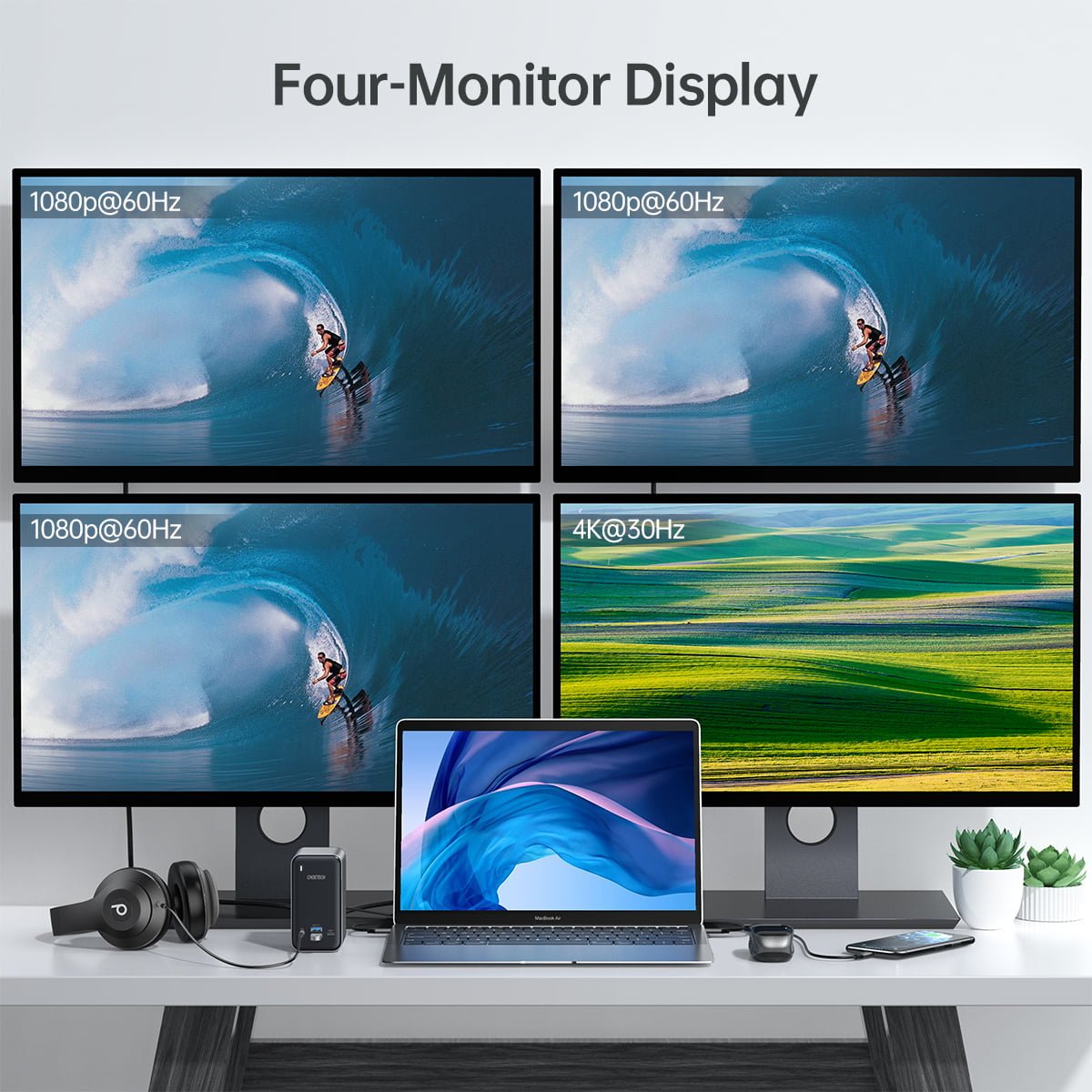

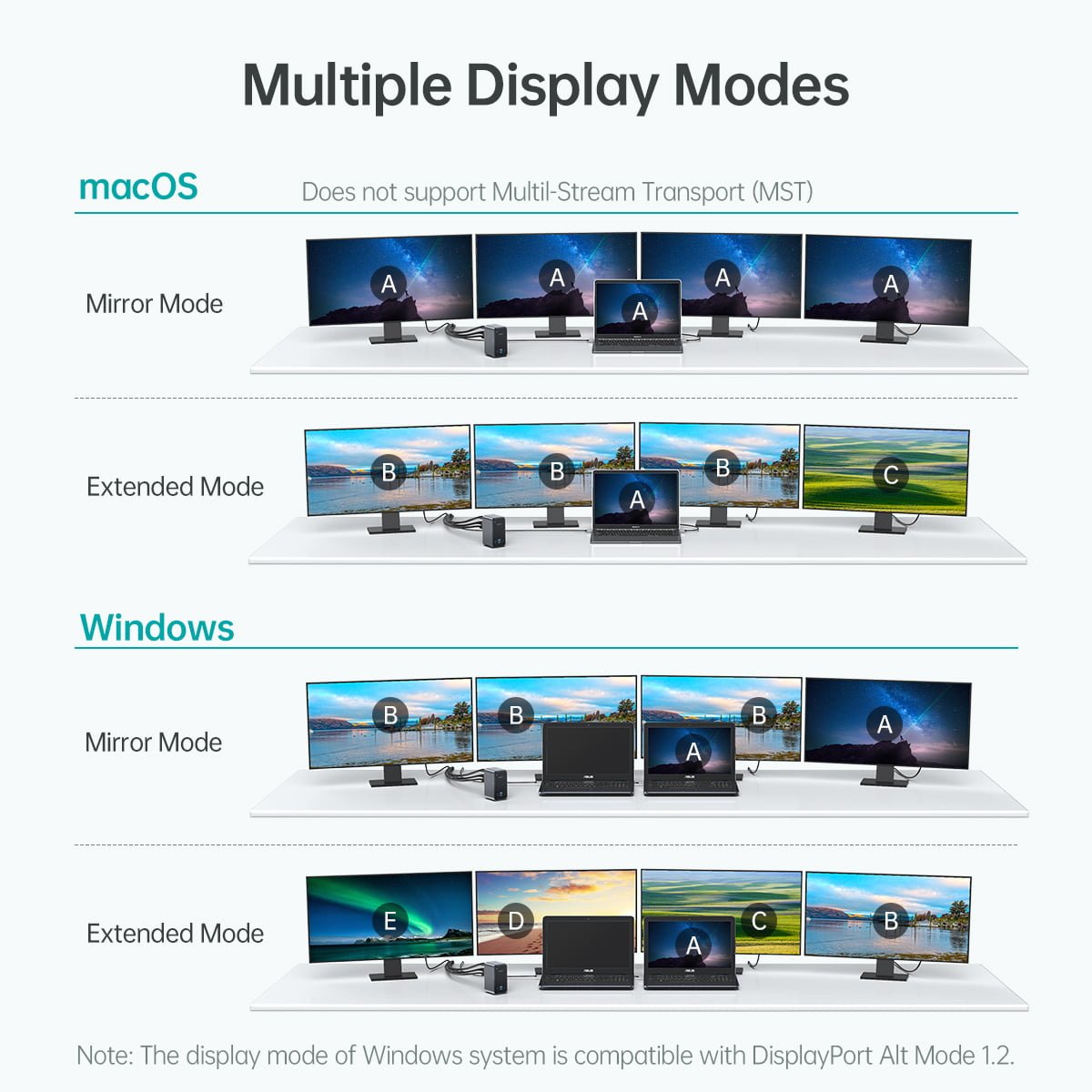

[4 Monitors Display] By connecting two cables to your laptops, you can gain 4 extra monitors through 3 HDMI & 1 VGA, and enjoy a matchless video experience. There is a Host ① and Host ② section over USB-C. Host ① displays out on HDMI①; Host ② displays out on HDMI ②③ and the VGA connector. Multiple display modes is available for Windows and macOS system laptops, including mirror mode and extended mode. macOS does not support Muti-Stream Transport (MST). If your Windows laptop is compliant with DP1.4, you can get the maximum resolution of 4K@60Hz of HDMI③. You can immerse yourself in working, entertaining, videos/images editing or stock exchanging at the same time.

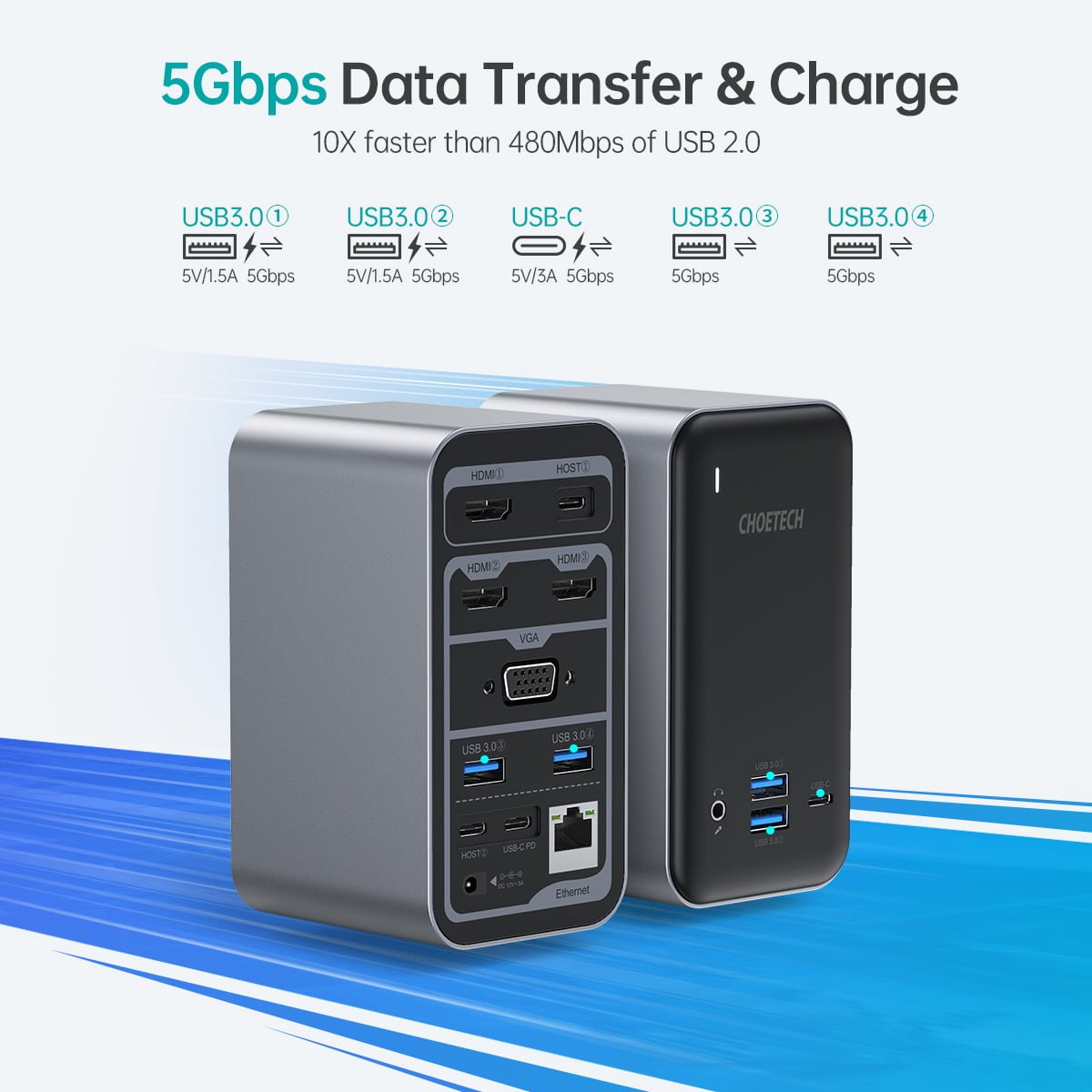

[Unparalleled Charging & Data Transfer] With USB-C PD100W input, 2 USB-A (5V/1.5A) and 1 USB-C (5V/3A), the docking station provides power for your USB-C laptop and your smart phones or other gears at the same time. USB-A ①②and 1 USB-C support 5Gbps data transfer and high-speed charging for other devices, but USB-A③④is only used to data transmission. 1000Mbps Gigabit RJ45 Ethernet makes you transfer a 1G movie in few minutes.

Description

Vivid 4K Displays

Projects 4K UHD or Full HD 1080P video to bring you cinema-like visual feast. Resolution up to 4K only when using only HDMI monitors. All the resolution will be limited to 1920*1080@60Hz when connecting VGA.

3.5mm Audio Jack

An output 3.5mm jack for connecting earphones, headphones, speakers, microphone. Perfect to bypass a faulty sound card, audio port, or as a substitute for a broken USB audio adapter.

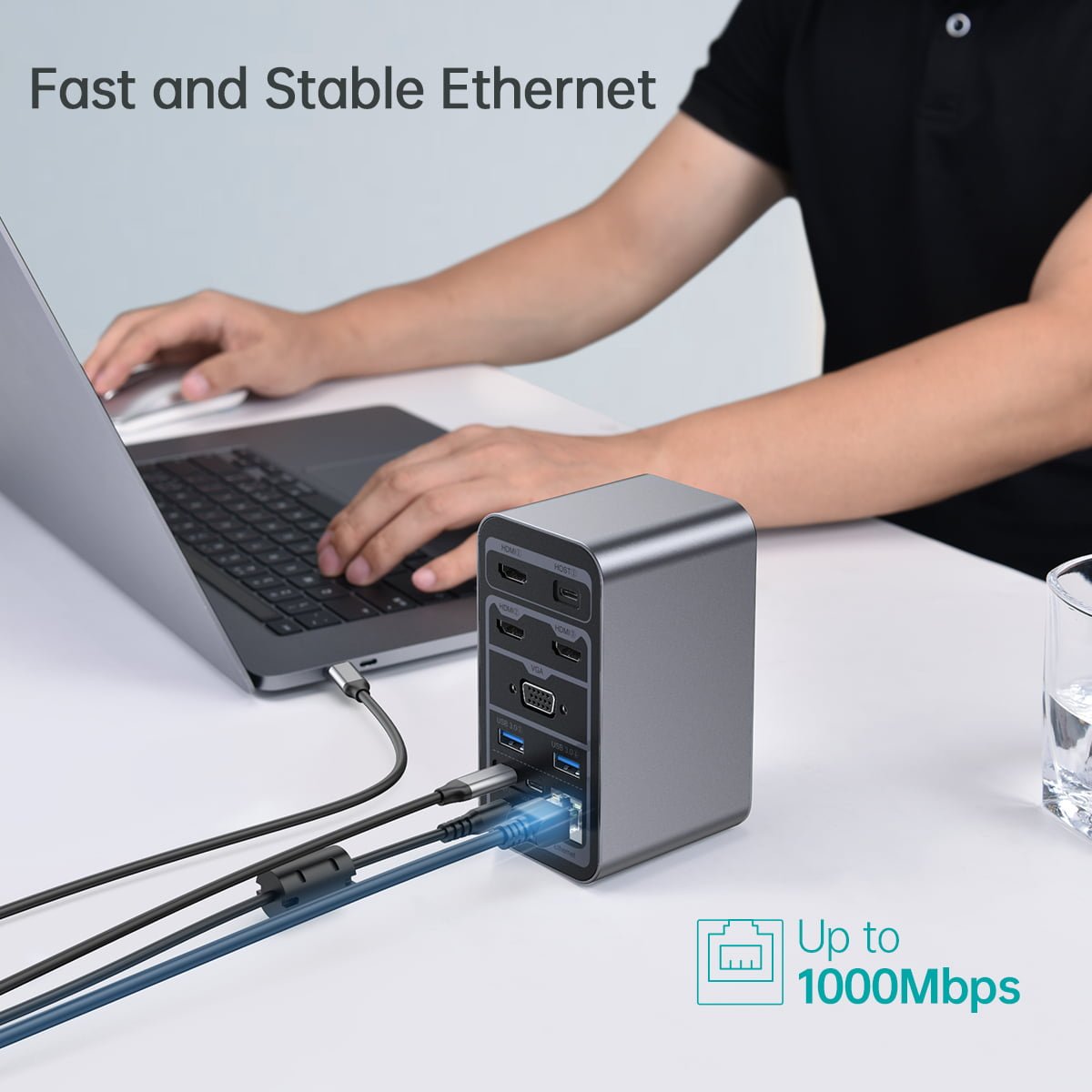

1000Mbps Ethernet

Faster and stabler access to the Internet than most wireless connections. Supports high speed up to 10/100/1000Mbps.

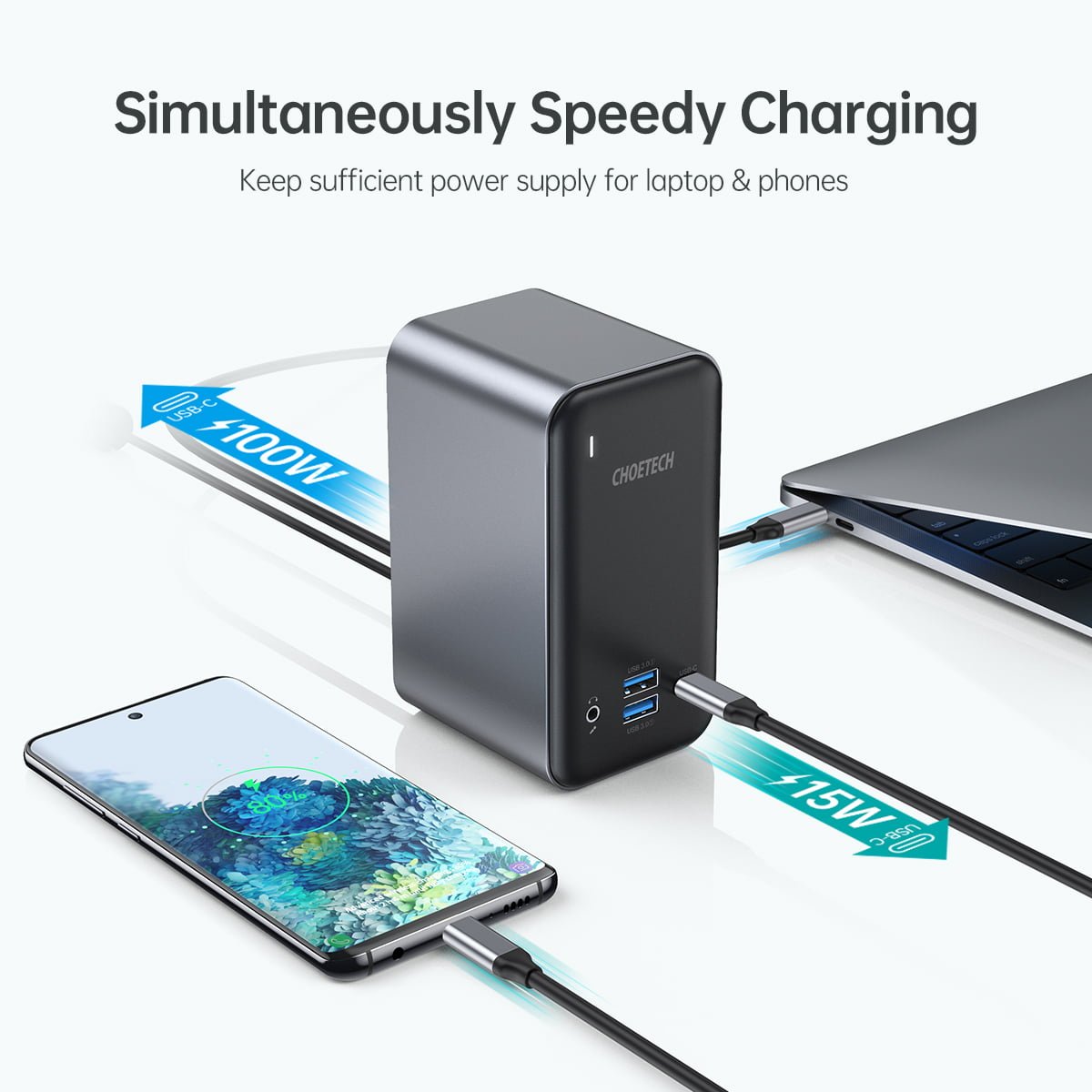

Triple Charging Ports

USB-A ①②and 1 USB-C respectively support 7.5W and 15W high-speed charging power, which is convenient for you to charge several devices and accessories and choose different charging cables that you have.

Built-in Independent Chips

Integrated smart chips inside provide better temperature control, surge protection, and short circuit, overheating, overvoltage protection and more.

Workspace Solution and Ergonomics Design

Featuring a vertical and small-sized design, it is easy to slip this dock between your monitors and saves your valuable desktop space.

Notes

1. Please make sure that your computer or device is equipped with USB-C ports.
2. For video output, your USB-C notebook or device must support DisplayPort Alt Mode over USB-C, or video signals cannot be sent to your monitors. To check whether your device has the necessary DisplayPort Alt Mode and what version it complies with, please refer to the manual of your device or contact the computer’s manufacturer.
3. If USB-C laptop’s system is compliant with DisplayPort Alt Mode version4, HDMI③ port supports high resolution up to 4K@60Hz. Only if Windows laptop complies with DisplayPort Alt Mode version 1.4 and is equipped with AMD graphics card, it can display total 4 screens via 2 HDMI and a VGA. Laptop’s Windows system featuring DisplayPort Alt Mode version 1.2 can support 3 external displays, but you need to set display modes on the laptop to realize it.
4. DC power adapter must be connected in order that the docking station runs normally.
5. For stable output, please connect the USB-C PD port to PD fast charger before using USB ports and video output ports.
6. VGA do not support audio output.
7. If two HDMI or above output simultaneously, the maximum resolution only reaches to 4K@30Hz.
8. For 4K resolution, please make sure your host machine, display screen and cable support 4K resolution.
9. All ports will function when two USB-C ports (HOST①&HOST②) are connected to a MacBook or two USB-C enabled laptops. Only when USB-C (HOST①) connected to laptop can HDMI① work, but other ports of the docking station can not work; Only when USB-C (HOST②) connected to laptop can all ports work but HDMI①.
10. USB 3.0 ① and USB 3.0 ② can offer power for phones while USB 3.0 ③ and USB 3.0④ are usually used to transfer data.
